IMAGING

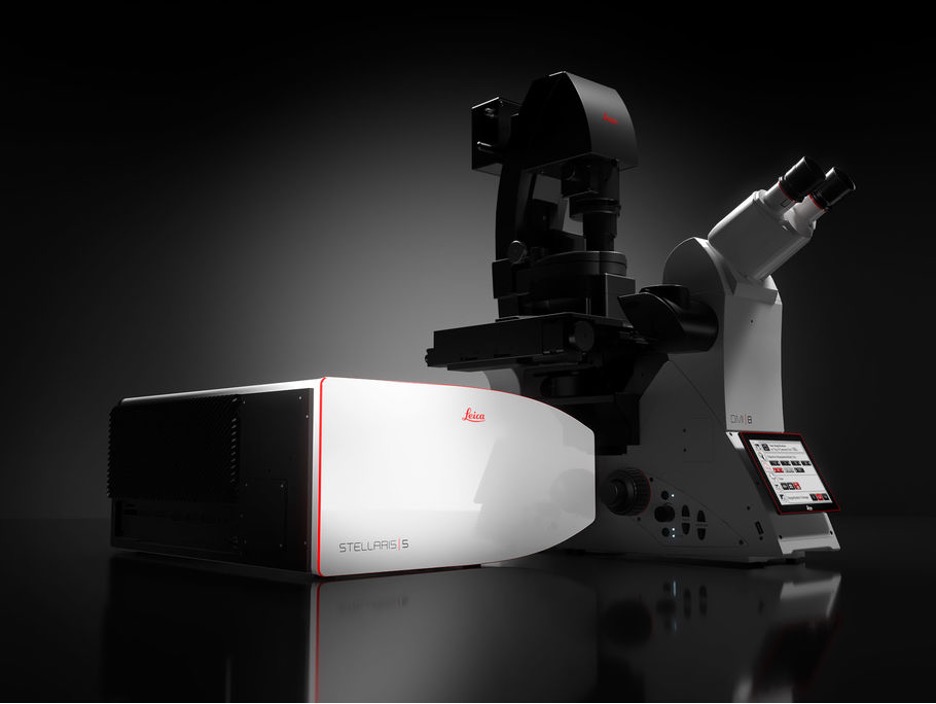

Objectives: (magnification/NA, working distance, immersion)
HC PL APO 10x/0.40, 2.2 mm (air)
HC FLUOTAR L 25x/0.95 W VISIR, 2.5 mm (water)
HC PL APO 20x/0.75 IMM CORR CS2, multi-immersion, 0.67 mm (water).
HC PL APO 40x/1.30 Oil CS2, 0.24 mm (oil)
HC PL APO 63x/1.40 OIL CS2, 0.14 mm (oil)
Laser:
UV-VIS (Laser 405 DMOD)
White Light Laser (Pulsed excitation light source from 485 nm to 685 nm)
Detection:
3 channel detection: Power Hybrid Detector HyD S (detection range up to 850 nm)
Tau Sense Lifetime Hardware & Software standard
Scanner:
FOV:  Multidimensional image acquisition in x, y, z space dimension and time, wavelength and any combination thereof 8kHz
Tandem Scanner: Up to 10 frames / second , 512 x 512 ‘-Up to 131 frames / second , 512 x 16 ‘-Max.
Black Microscope Enclosure Env Cntrl (passive CO2)

Objectives: (magnification/NA, working distance, air)
Plan Apochromat 2X 0.1/8.5mm (BZ-PA02)
Plan Fluorite 10X PH 0.3/14.5mm (BZ-PF10P)
Plan Fluorite 20X LD PH 0.45/7.5-8.8mm (BZ-PF20LP)
Plan Fluorite 40X LD PH 0.6/2.2-3.3mm (BZ-PF40LP)
Plan Apochromat 20X 0.75/0.6 mm (BZ-PA20)

Filters:
DAPI: Excitation: 360/40 nm; Emission: 460/50 nm; Dichroic 400 nm
GFP: Excitation: 470/40 nm; Emission: 525/50 nm; Dichroic 495 nm
TRITC: Excitation: 545/25 nm; Emission: 605/70 nm; Dichroic 565 nm
Texas Red: Excitation: 560/40 nm; Emission: 630/75 nm; Dichroic 585 nm
Cy5: Excitation: 620/60 nm; Emission: 700/75 nm; Dichroic 660 nm

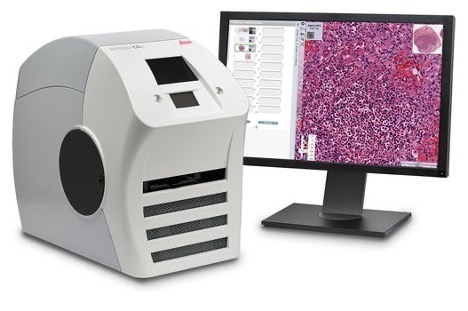

Capacity: 5 slides (1 x 3″)
Input Format: 1-inch x 3-inch (25 mm x 75 mm)
Objective Lenses: 20x/0.75 NA Plan Apo (40x scanning with 2x optical magnification changer)
Illumination: Brightfield
Z stacking: Yes
Scan Method: TDI line scan
